ZBD-110 Built-in. dimmer Energy measurement Z-Wave

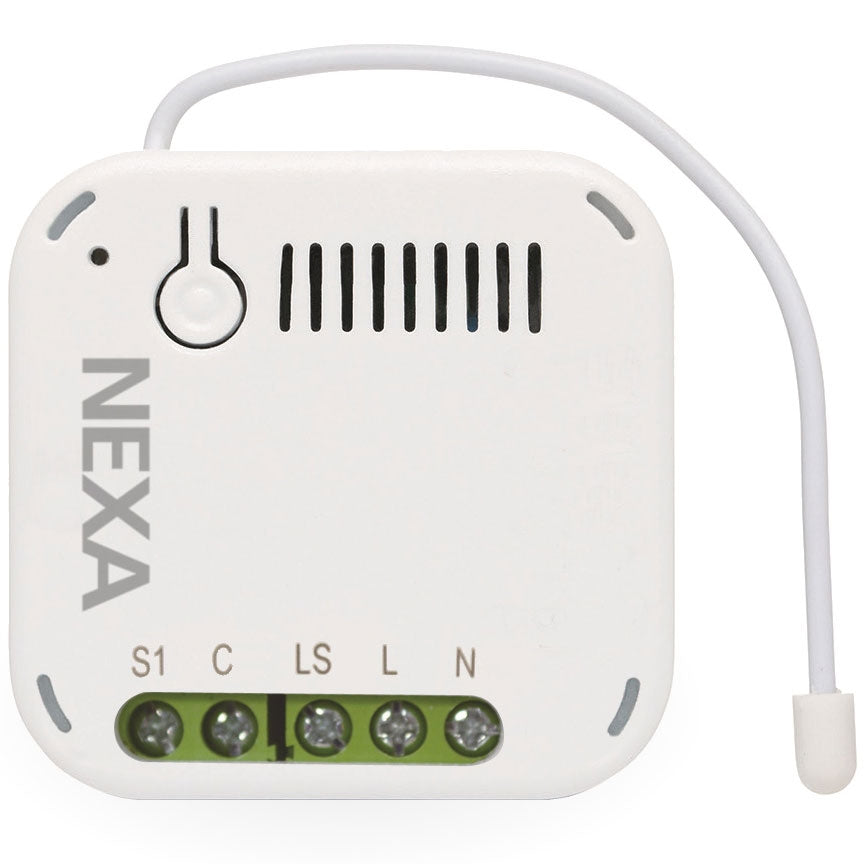

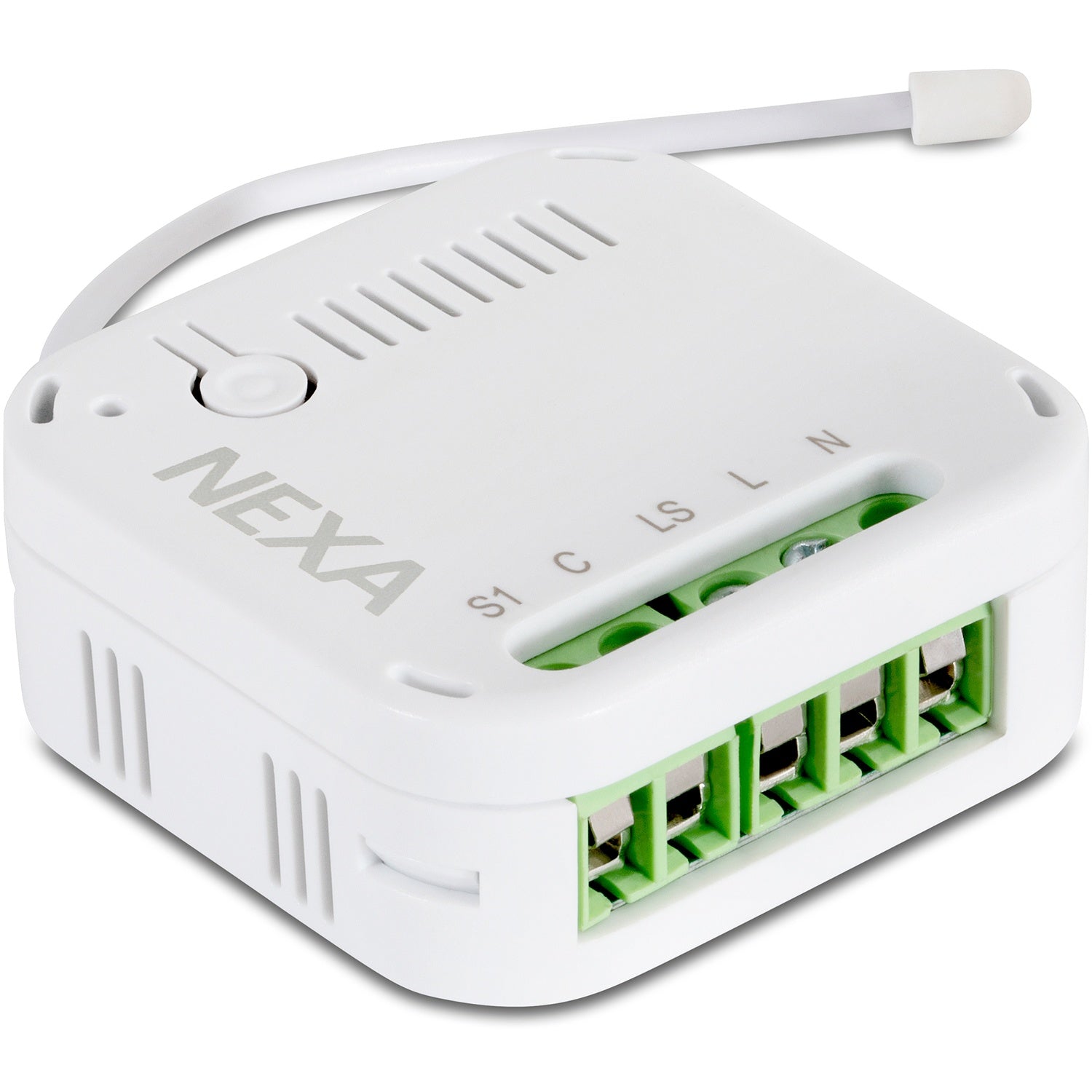

Nexa ZBD-110 built-in dimmer

Z-Wave 700 universal dimmer for fixed installation with spring-loaded switch input.
ZBD-110 detects and adapts settings to connected load , has energy measurement and can be connected with or without neutral conductor.

• Auto detection of load type
• Auto calibration of min. level
• Energy measurement
• Pushdim
• Adjustable ramp time 1-600 seconds
• Selectable linear/logarithmic dimmer curve
• Memory for last status
• Z- Wave 700 series

Technical data
Power source: 220-240 V ~50Hz
Max. load: 40–250 W Incandescent
Max. load: LED 2-200 W LED / 10-200 W LED in series with load
Operating temperature: 0° to 40°C RH 8-80%
Protocol: Z-Wave (868.42 MHz)
IP classification: IP22 (Indoor use)
Dimensions (H x W x D): 43 x 42 x 17.5 mm

Product document
