Wireless HDMI transmission KVM 1 to 4 4K@60Hz

LogiLink HDW0103 4K Wireless Video Transmission, 1 to 4, 150 m

Seamless connection, unmatched clarity! Transmit HDMI video and audio signals wirelessly in UHD 4K/60 Hz over a distance of up to 150 m with clear line of sight, featuring KVM functionality.

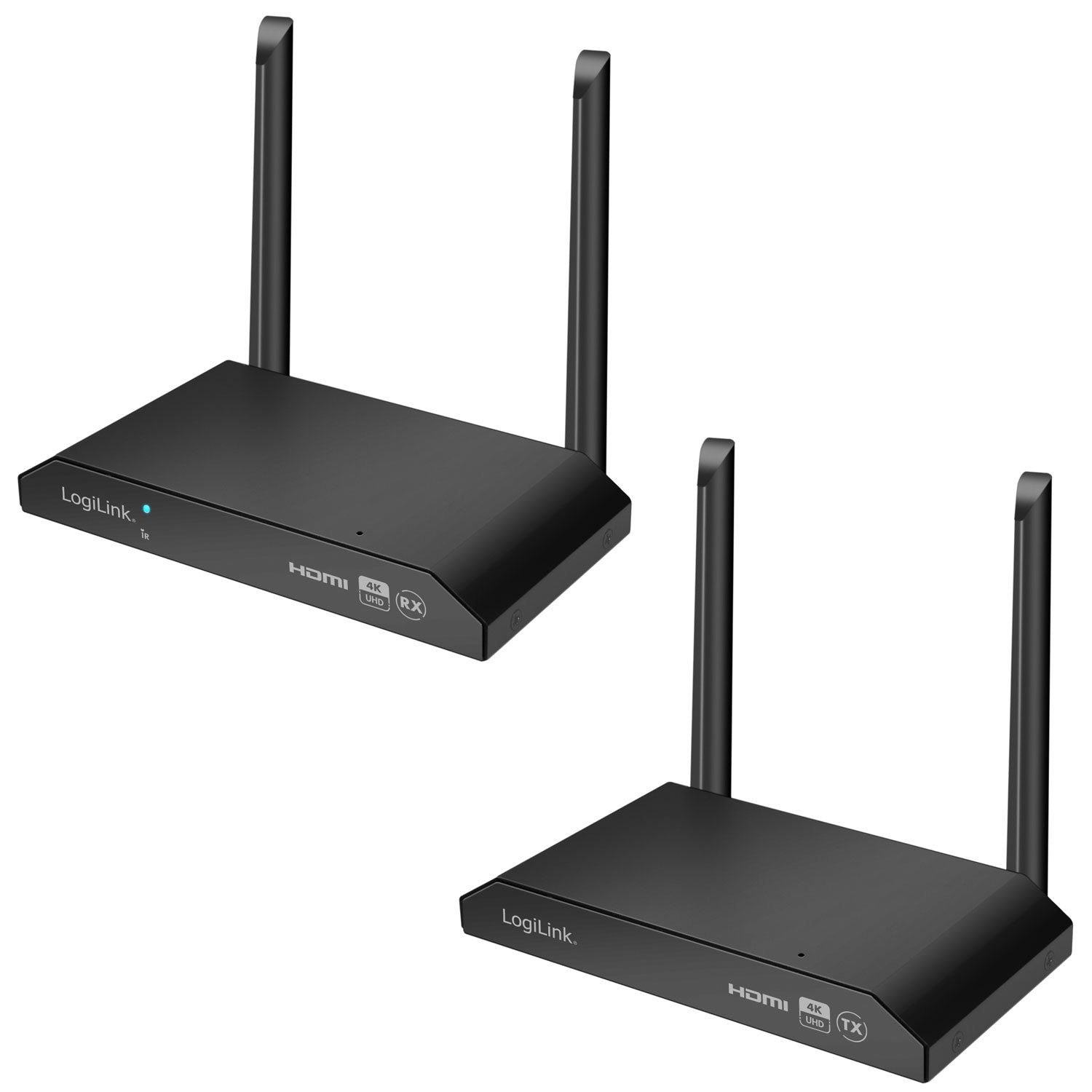

The wireless HDMI KVM transmission unit from LogiLink transmits your HDMI video and audio signals in Ultra HD (4K) resolution wirelessly over a distance of up to 150 m (with clear line of sight). Thanks to the KVM function, a mouse and keyboard can be connected to the receiver unit, allowing you to control the signal source directly on the output device. The auto-pairing function ensures easy setup. Support for multicast functionality means up to 4 receiver units or endpoint devices can be connected and used simultaneously. Avoid the hassle of running HDMI cables and use this user-friendly wireless HDMI extender system.

- Based on HDMI 2.0 technology and wireless standard 802.11ac
- Bandwidth: 6 Gbps/600 MHz per channel (18 Gbps total)
- Supports UHD A/V signal transmission up to 150 m/492 ft
- Supports video resolution of Ultra HD 4K/60 Hz (YUV 4:2:0)
- Compatible with HDCP 2.2
- Supports DDC and KVM function (mouse/keyboard connection)
- Supports PCM 2-channel audio (Stereo)
- Near-zero latency
- Metal chassis
- Power supply: DC 5 V/1 A
- Plug-and-play - no driver installation needed

Point-to-multipoint connections: 1 transmitter to 4 receivers
Screen sharing from your laptop or tablet to multiple HDMI TVs/Monitors

Enhanced viewing experience
Ultra-high-definition (4K) image quality delivers crystal-clear pictures and vibrant colors.

Low latency
Ensures smooth, lag-free video and audio transmission, crucial for gaming and real-time presentations.

Easy installation
Plug-and-play functionality makes it simple to set up and use without extensive configuration.

Multi-room usage
Allows streaming from one source to multiple screens in different rooms, increasing flexibility in device placement.

KVM functionality
For connecting to a mouse and keyboard.

Rear control with touchscreen
Supports touchscreen panels (via USB connection on the receiver).

Compatibility
Works with a wide range of devices, including TVs, projectors, laptops, and gaming consoles.

Wide usage
Perfect for streaming movies, playing video games, watching sports, business meetings, educational presentations, events, and presentations.

Specifications:

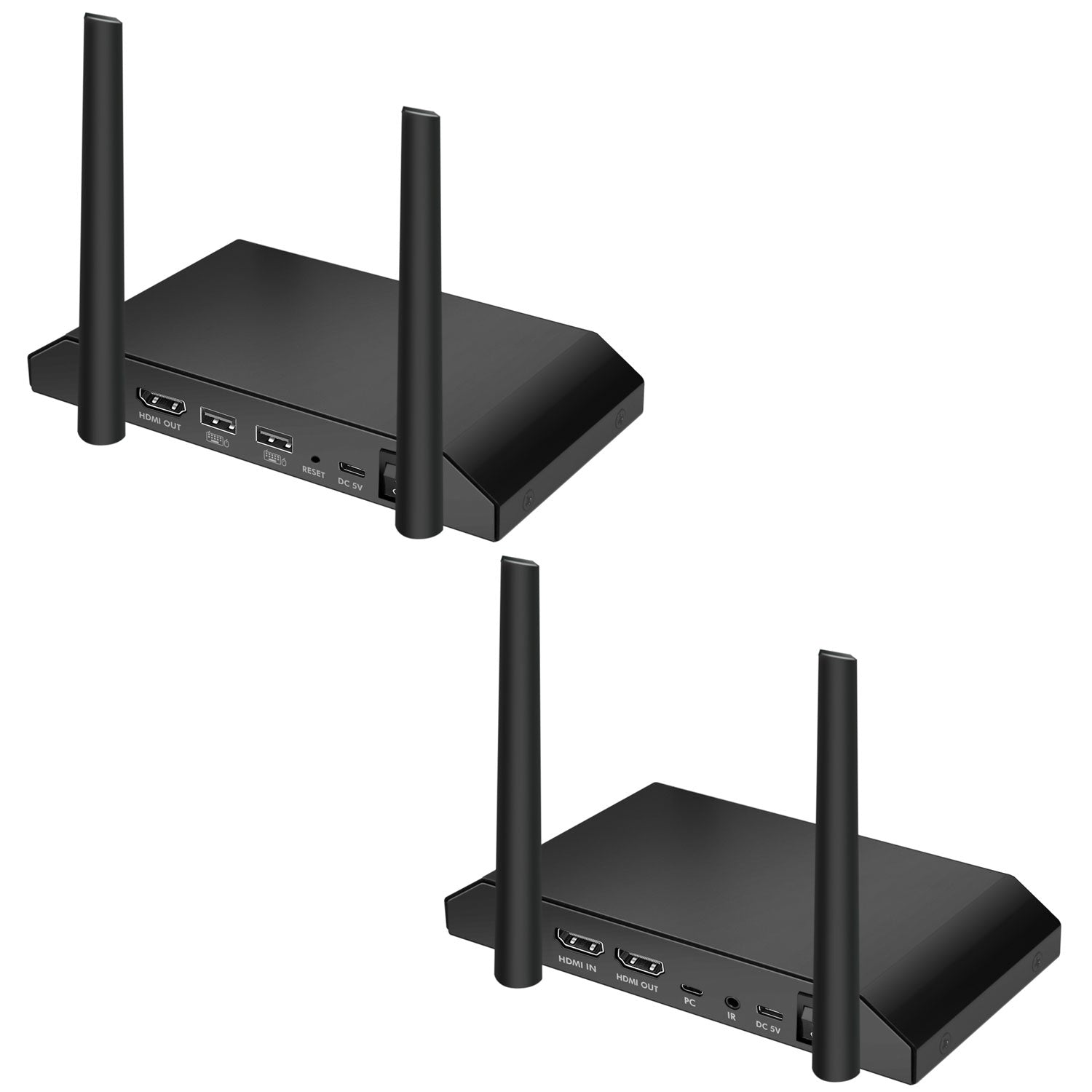

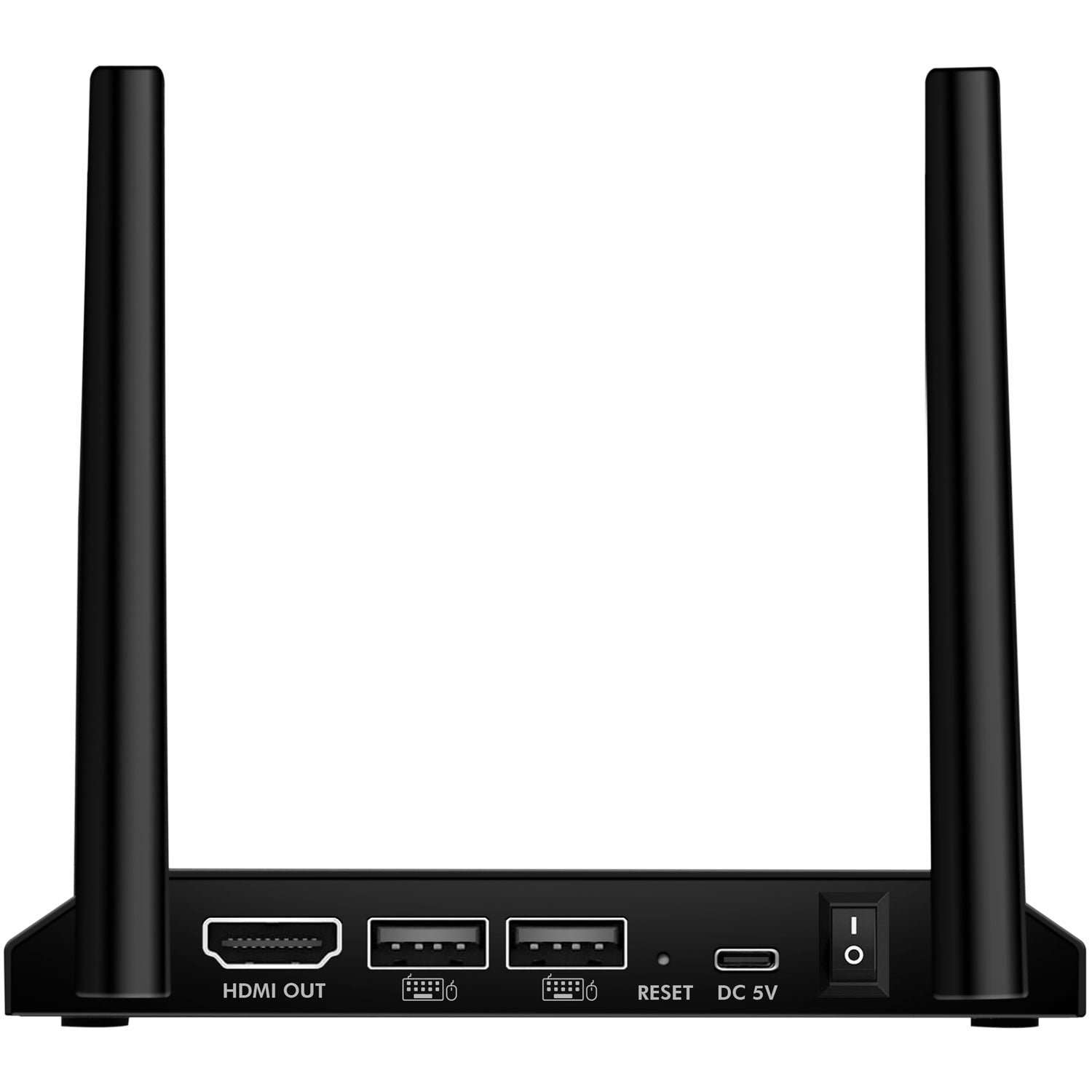

Connection: TX: 2x HDMI-A female, 1x Micro USB female, 1x USB-C female, 1x IR output. RX: 1x HDMI-A female, 2x USB-A female, 1x USB-C female
HDMI version: 2.0
HDCP version: 2.2
Output resolution: Up to 4K/60 Hz (RX)
Transmission distance: Up to 150 m (clear view)
Protocol: WPA2
Security: AES 128-bit encryption
Latency: 100 ms (at 60 frames per second)
Wireless standard: IEEE 802.11b/g/n/ac, 2.4G/5G, 2T2R
Frequency range: TX: 5150-5250 MHz, RX: 5150-5250 MHz
Max. Transmission power: TX: 57 mW, RX: 58 mW
Audio format: PCM (2 channels)
IR extended function: Support for 38-56 KHz wide frequency
USB KVM: Support for mouse/keyboard/touch panel control
Automatic pairing and connection: Yes
LED indication: Yes
Operating temperature: 0-40°C
Operating humidity: 10-80% RH (non-condensing)
Dimensions: TX/RX: 15.4 x 7.75 x 2.1 cm
Weight: TX/RX: 330 g
Compatibility with: Windows, macOS, iOS, iPadOS, Android
Power supply: DC 5 V/2 A (max 10 W)
Color: Black

Package contents
1x Transmitter (TX)
1x Receiver (RX)
2x HDMI cable
2x USB-C cable
