Wireless HDMI transfer USB-C to HDMI kit 1to1 4K@60Hz

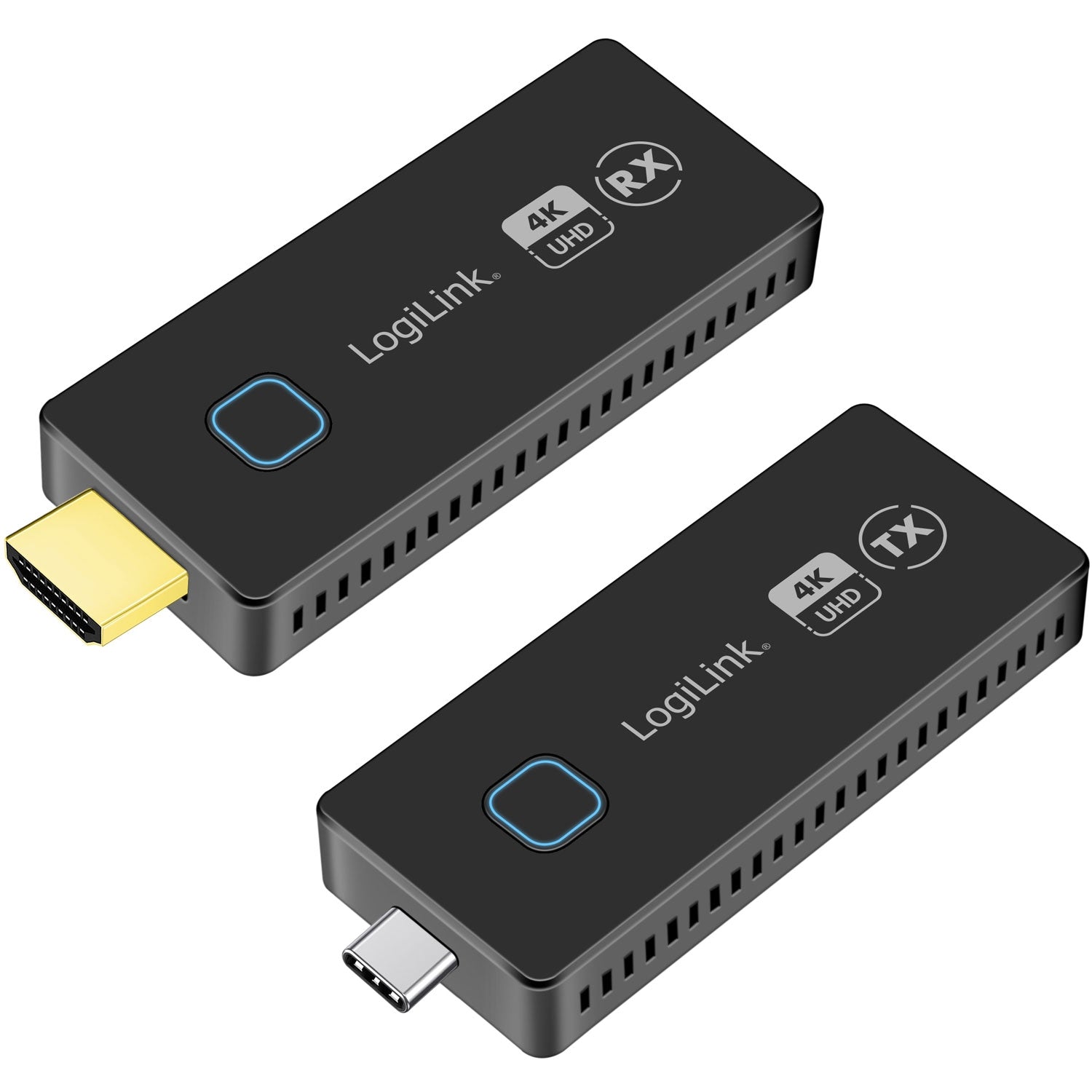

LogiLink HDW0104 4K Wireless Video Transmission: USB-C to HDMI

Experience seamless connectivity and unmatched clarity with the LogiLink HDW0104. This device wirelessly transmits HDMI video and audio signals in Ultra HD 4K/60 Hz over a distance of up to 30 meters with a clear line of sight. The wireless HDMI KVM transmission kit allows you to connect a mouse and keyboard to the receiver, enabling direct control of the signal source from the output device. Its auto-pairing feature ensures easy setup, and the multicast function supports up to four receiver units simultaneously. Avoid the hassle of HDMI cables with this user-friendly wireless HDMI extender system.

Key Features:
- Based on HDMI 2.0 technology and wireless standard 802.11ac
- Bandwidth: 6 Gbit/s/600 MHz per channel (18 Gbit/s total)
- Supports UHD A/V signal transmission up to 150 m/492 ft
- Supports video resolution of Ultra HD 4K/60 Hz (YUV 4:2:0)
- Compatible with HDCP 2.2
- Supports DDC and KVM function (mouse/keyboard connection)
- Supports PCM 2-channel audio (Stereo)
- Near-zero latency
- Metal chassis
- Power supply: DC 5 V/1 A
- Plug-and-play - no driver installation required

Point-to-Point Connection: USB-C to HDMI
Share your laptop or tablet screen to an HDMI TV/Monitor

Enhanced Viewing Experience
Ultra-high-definition (4K) image quality ensures crystal-clear pictures and vibrant colors

Freedom from Cables
Eliminates the need for HDMI cables, reducing clutter and providing a clean setup

Low Latency
Ensures smooth, lag-free video and audio transmission, crucial for gaming and real-time presentations

Easy to Install
Plug-and-play functionality makes it simple to set up and use without extensive configuration

Portable
Compact design allows easy relocation and installation in various settings, suitable for both home and professional use

Compatibility
Works with a wide range of devices, including TVs, projectors, laptops, and gaming consoles

Wide Application
Ideal for streaming movies, playing video games, watching sports, business meetings, educational presentations, events, and presentations

Specifications:

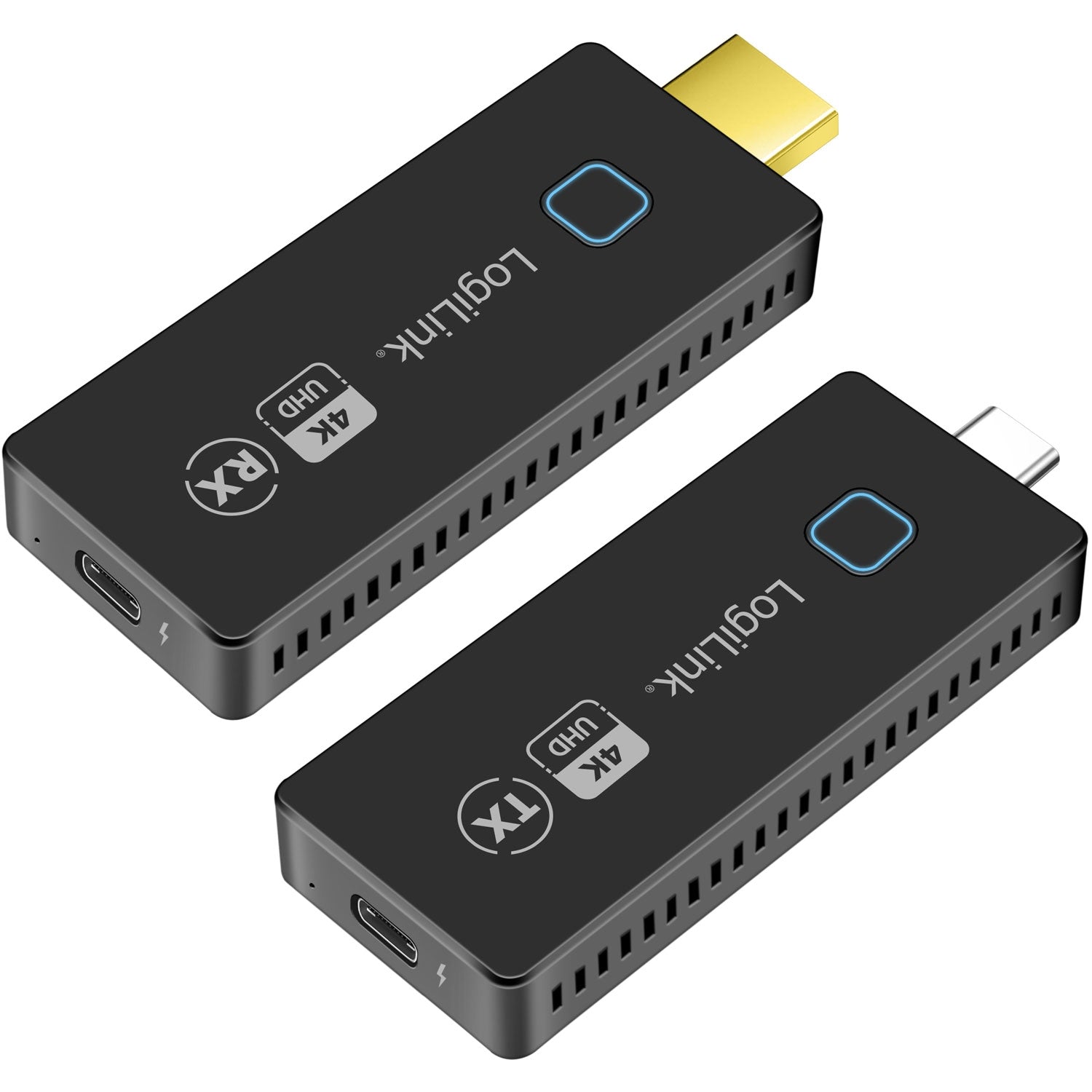

- Connection: TX: 1x USB-C male, 1x USB-C female. RX: 1x HDMI-A male, 1x USB-C female
- HDMI version: 2.0/1.4
- HDCP version: 2.2/1.4
- Output resolution: Up to 4K/60 Hz
- Transmission distance: Up to 30 m (unobstructed view)
- Protocol: WPA2
- Security: AES 128-bit encryption
- Latency: 100 ms (at 60 frames per second)
- Wireless standard: 802.11ac
- Frequency range: TX: 5180-5240 MHz/5745-5825 MHz. RX: 5180-5240 MHz/5745-5825 MHz
- Max. transmission power: TX: 17.37 mW/18.23 mW. RX: 22.02 mW/19.72 mW
- Audio format: PCM (2 channels)
- Automatic pairing and connection: Yes
- LED indication: Yes
- Operating temperature: 0-40°C
- Operating humidity: 10-80% RH (non-condensing)
- Dimensions: TX: 8.75 x 3.4 x 1.28 cm. RX: 9.1 x 3.4 x 1.28 cm
- Weight: TX: 37.5 g, RX: 25.5 g
- Compatibility: Windows, macOS, iOS, iPadOS, Android
- Power supply: Powered via USB-C port (5 V/1 A, max 5 W)
- Color: Black

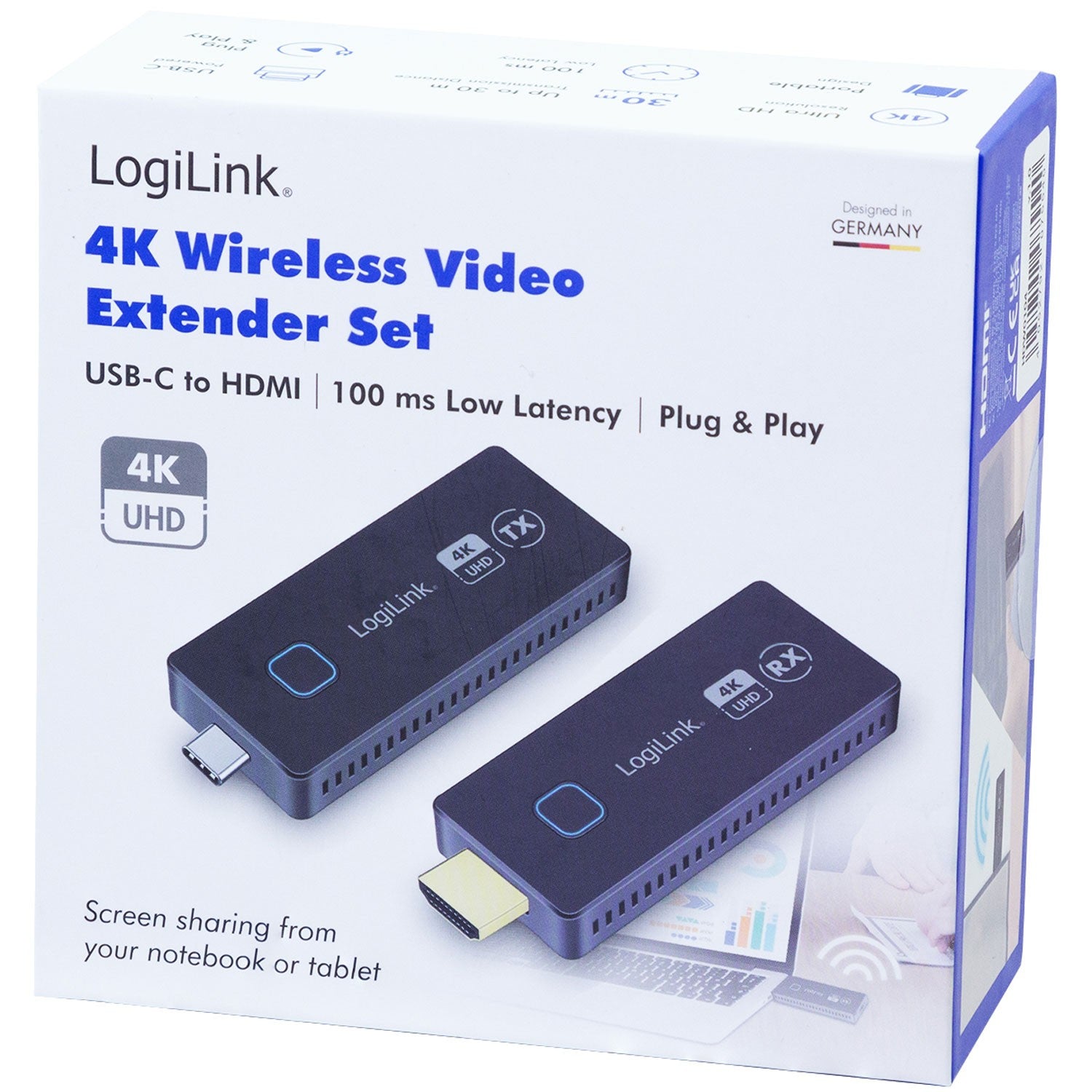

Package Contents:
- 1x Transmitter (TX)
- 1x Receiver (RX)
- 1x HDMI extension cable
- 1x USB-C extension cable
- 2x USB-C to USB-A cable
- 1x User manual
