LogiLink
USB-C 3.5mm audio adapter with DAC and EQ
USB-C 3.5mm audio adapter with DAC and EQ
Regular price
€45,99 EUR
Regular price
€54,99 EUR
Sale price
€45,99 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

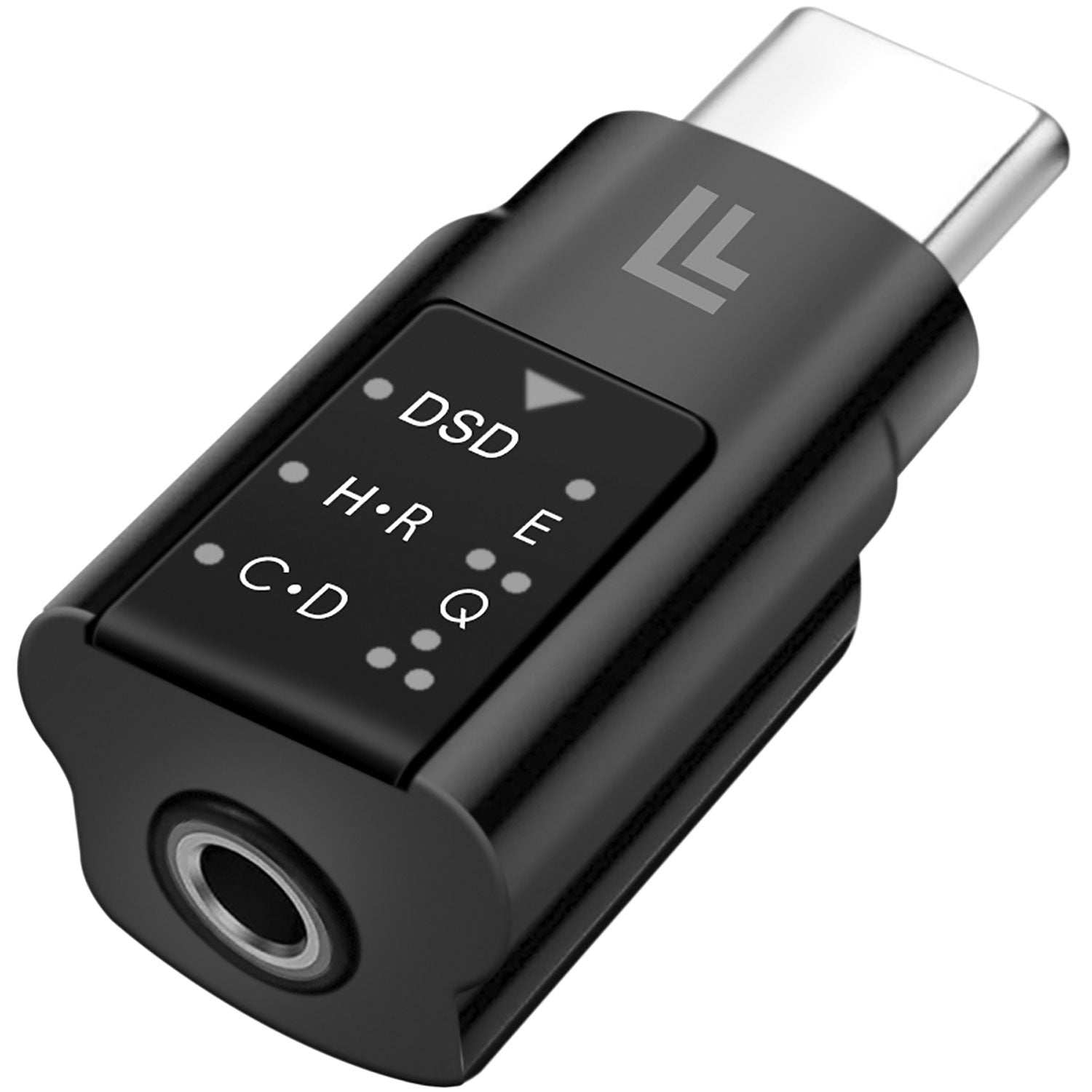

LogiLink UA0424 USB-C DAC Audio Adapter
If your smartphone or tablet no longer has a standard 3.5 mm jack for your headphones and only features a USB-C port, the LogiLink DAC adapter is the perfect solution. Simply connect the UA0424 to the USB-C port and plug your headphones into the adapter. Enjoy improved sound quality thanks to DAC and PCM/DSD decoding, enhancing your music experience. The built-in equalizer allows you to adjust the sound to your personal preferences.
The LogiLink USB-C DAC Audio Adapter converts digital audio signals to analog sound and connects to headphones via a 3.5 mm headphone cable. It enhances audio with Hi-Fi performance, making it ideal for gamers, YouTubers, or music enthusiasts.
- Connect a 3.5 mm headset to USB-C devices with enhanced audio quality
- Hi-Res sampling rate of 384 kHz/32 bit (PCM) or DSD128
- Three audio amplification modes designed for different scenarios
- Supports headset control buttons
- Compatible with most smartphones, tablets, and laptops with USB-C
Specifications:
- Connection 1: USB-C male
- Connection 2: 3.5 mm audio jack (TRRS stereo output and mono microphone input)
- USB standard: USB Audio Device Class Specification 2.0
- Control: EQ mode
- Signal-to-noise ratio (SNR): 115 dB, 20-20 kHz A-weighting
- Frequency response: 20 Hz-20 kHz ±0.5 dB
- Sampling rates: 32-bit 384 kHz PCM or DSD128
- Max. Output power (per channel): -125 mW@32 ohms; -90 mW@100 ohm
- Crosstalk: =110 dB
- Headphone operation: 3-pole 16-300 ohm headphones
- Total harmonic distortion (THD+N): 0.003%@1 mW
- Power supply: USB bus-powered
- LED indicators: Yes, for sampling rate and EQ modes
- Housing material: ABS
- Color: Black
- Compatibility: Most smartphones, tablets, and laptops with USB-C
- Operating temperature: 0-70°C
- Operating humidity: 10-90% RH (non-condensing)
- Dimensions: 2.6 x 1.3 x 1.1 cm
- Weight: 2.5 g
If your smartphone or tablet no longer has a standard 3.5 mm jack for your headphones and only features a USB-C port, the LogiLink DAC adapter is the perfect solution. Simply connect the UA0424 to the USB-C port and plug your headphones into the adapter. Enjoy improved sound quality thanks to DAC and PCM/DSD decoding, enhancing your music experience. The built-in equalizer allows you to adjust the sound to your personal preferences.
The LogiLink USB-C DAC Audio Adapter converts digital audio signals to analog sound and connects to headphones via a 3.5 mm headphone cable. It enhances audio with Hi-Fi performance, making it ideal for gamers, YouTubers, or music enthusiasts.
- Connect a 3.5 mm headset to USB-C devices with enhanced audio quality
- Hi-Res sampling rate of 384 kHz/32 bit (PCM) or DSD128
- Three audio amplification modes designed for different scenarios
- Supports headset control buttons
- Compatible with most smartphones, tablets, and laptops with USB-C
Specifications:
- Connection 1: USB-C male
- Connection 2: 3.5 mm audio jack (TRRS stereo output and mono microphone input)
- USB standard: USB Audio Device Class Specification 2.0
- Control: EQ mode
- Signal-to-noise ratio (SNR): 115 dB, 20-20 kHz A-weighting
- Frequency response: 20 Hz-20 kHz ±0.5 dB
- Sampling rates: 32-bit 384 kHz PCM or DSD128
- Max. Output power (per channel): -125 mW@32 ohms; -90 mW@100 ohm
- Crosstalk: =110 dB
- Headphone operation: 3-pole 16-300 ohm headphones
- Total harmonic distortion (THD+N): 0.003%@1 mW
- Power supply: USB bus-powered
- LED indicators: Yes, for sampling rate and EQ modes
- Housing material: ABS
- Color: Black
- Compatibility: Most smartphones, tablets, and laptops with USB-C
- Operating temperature: 0-70°C
- Operating humidity: 10-90% RH (non-condensing)
- Dimensions: 2.6 x 1.3 x 1.1 cm
- Weight: 2.5 g
