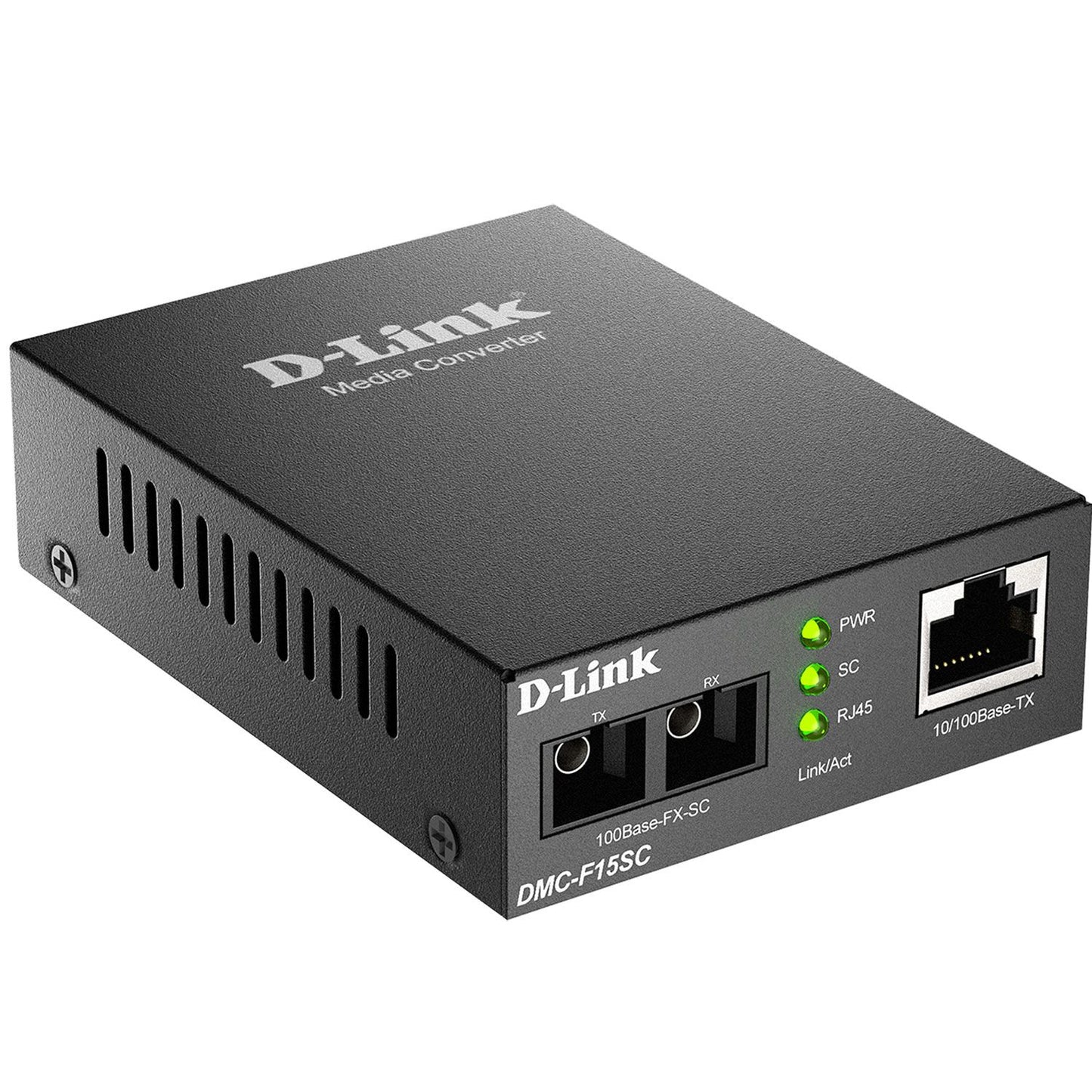

DMC-F15SC 10/100BaseTX to 100BaseFX SC Single-mode Media Converter 15km

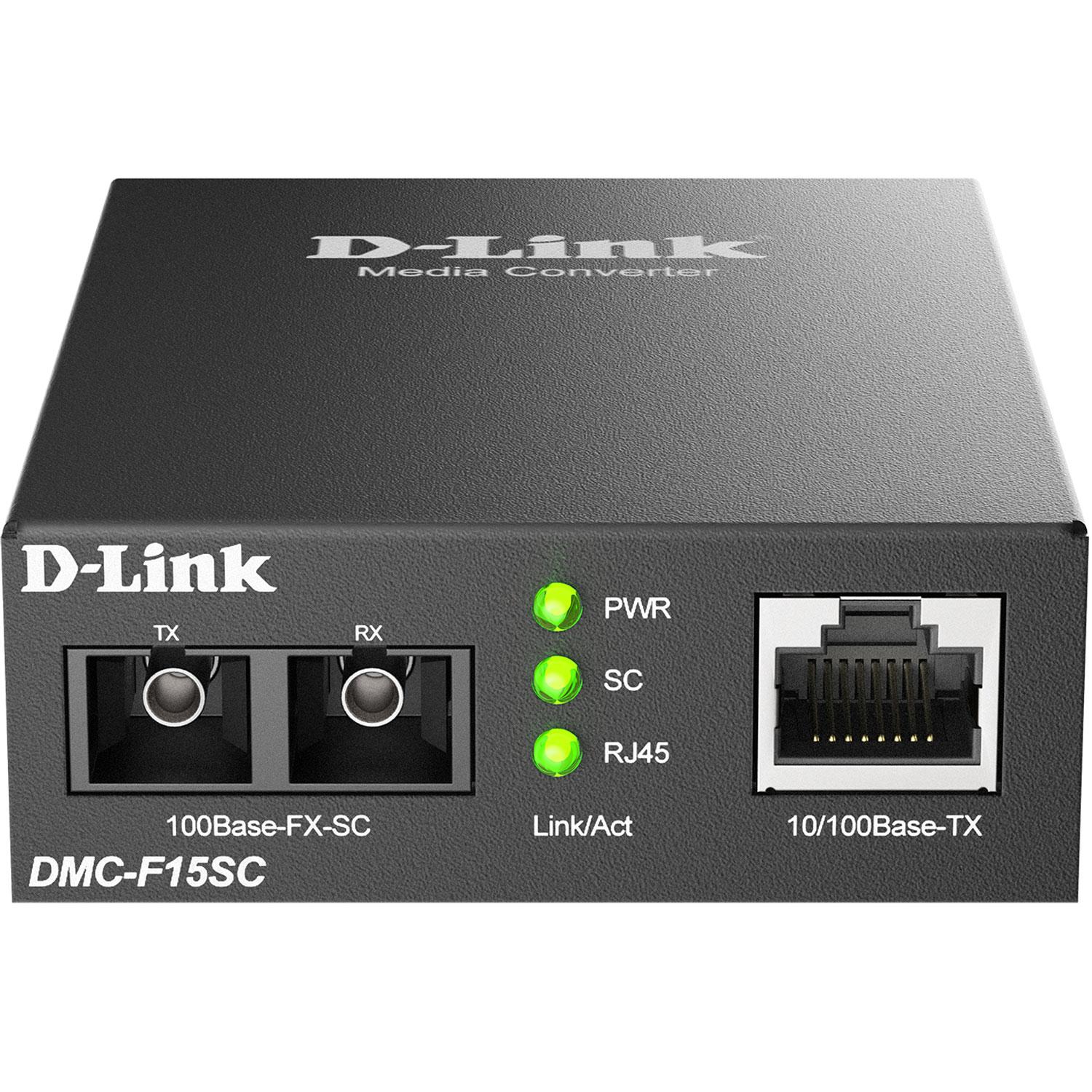

DMC-F15SC is a standalone media converter designed to transform a twisted-pair 10/100Base-TX Fast Ethernet connection into a single-mode fiber 100Base-FX Fast Ethernet connection, extending the connection distance up to 15 km between two devices. This media converter is equipped with an RJ-45 port for twisted-pair network cable and a fiber optic SC port.

Specifications:

Hardware
Interface: 1 x 10/100Base-TX port, 1 x 100Base-FX SC port
LED Indicators: Power, Link/Activity (SC), Link/Activity (RJ-45)

Certifications
Safety Certification: LVD
EMI/EMC: CE Class B

Functionality
Standards and Features: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, Auto MDI/MDIX adjustment for copper port

Physical Parameters
Dimensions (L x W x H): 70.5 x 93.5 x 26 mm
Weight: 134 g

Environmental Conditions

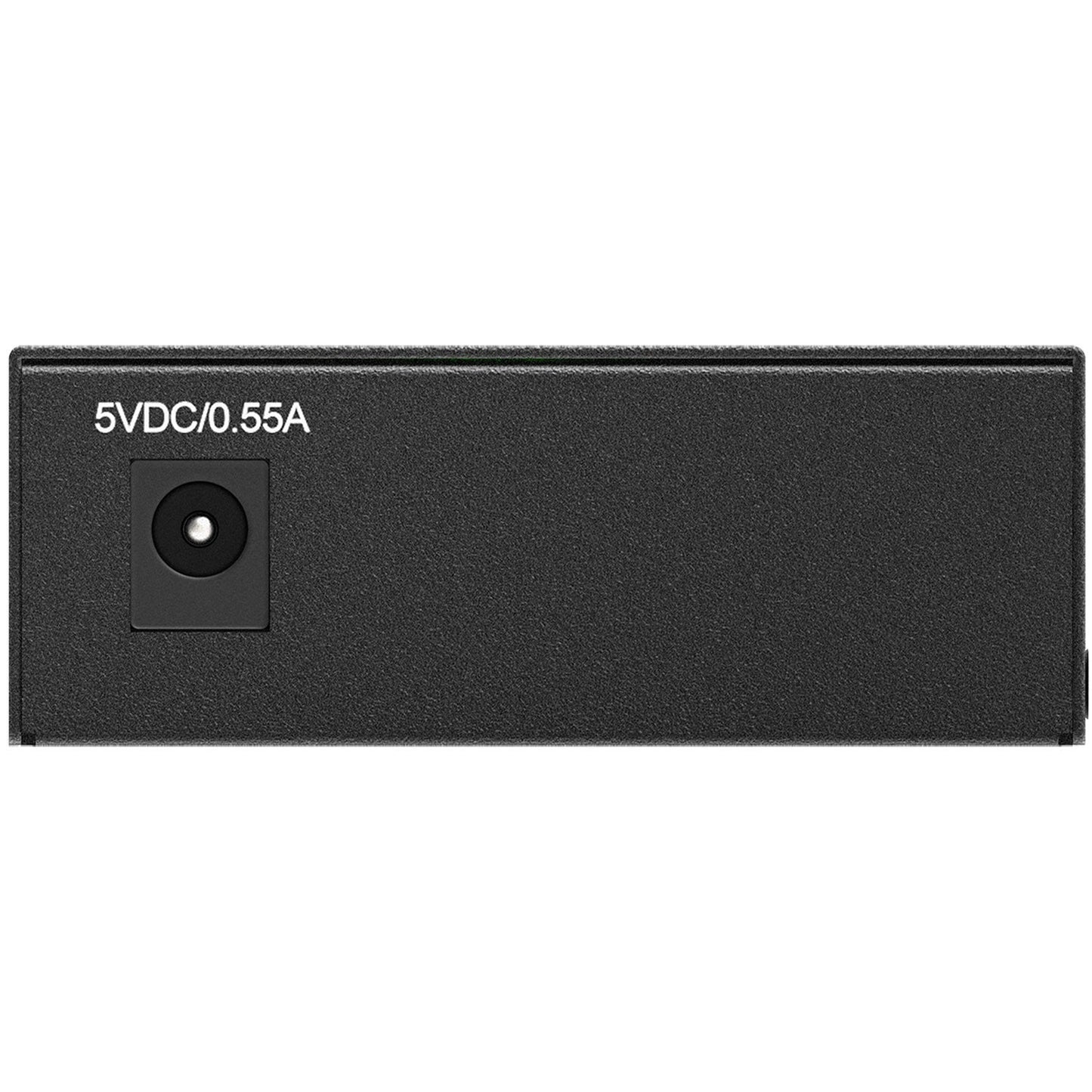

Power Supply: 5 V DC, 0.55 A power adapter
Max Power Consumption: 1.5 W
Max Fiber Optic Cable Length: Up to 15 km
Temperature: Operating: 0 to 55 °C, Storage: -25 to 70 °C
Humidity: 20% to 80% non-condensing
