D-Link

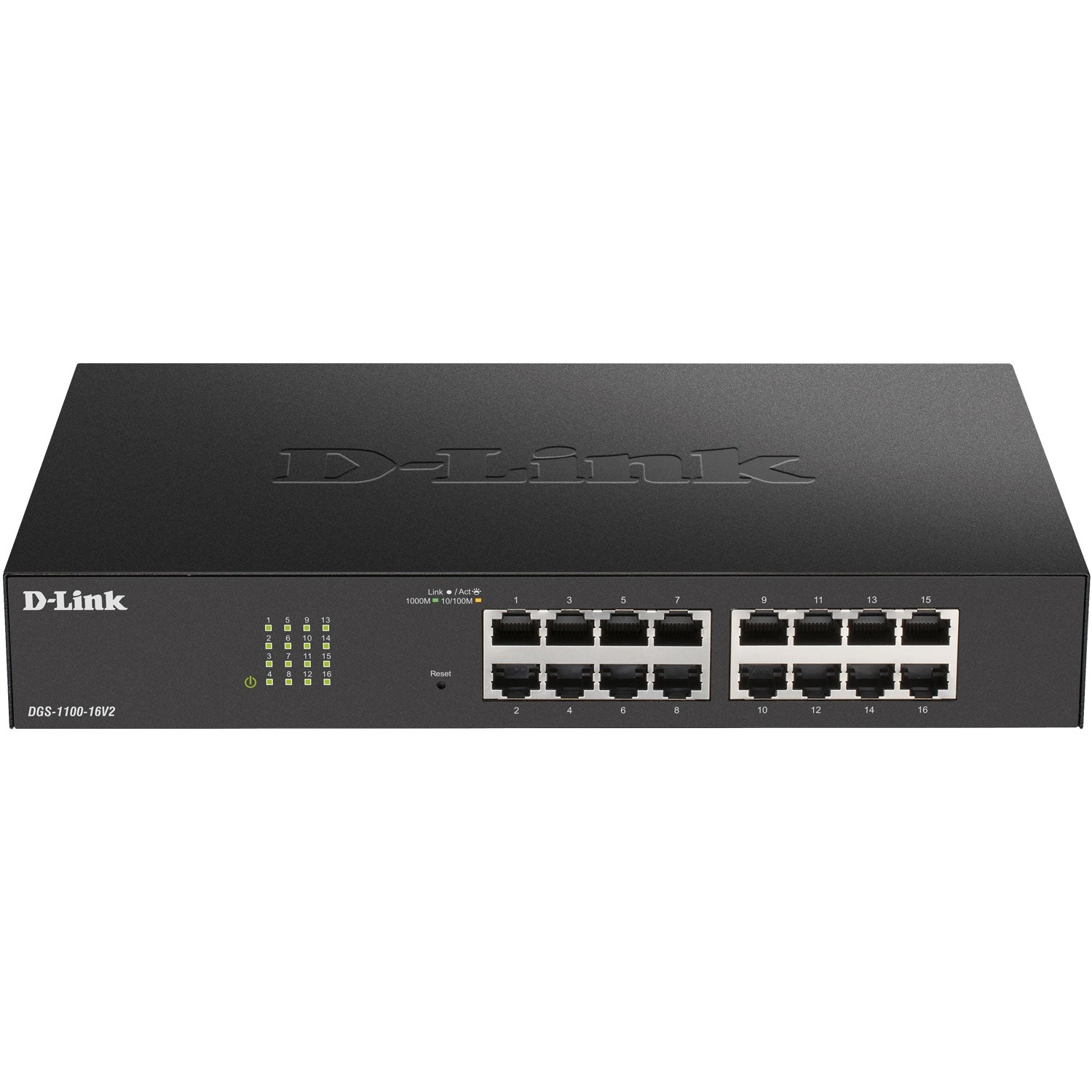

DGS-1100-16V2 16-port Smart Administerable Gigabit Switch
DGS-1100-16V2 16-port Smart Administerable Gigabit Switch
Regular price
€299,99 EUR
Regular price
€329,99 EUR
Sale price
€299,99 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
DGS-1100-16V2 - Smart Managed Gigabit Switch
• 16 x 1000Base-T ports
• Fanless design
• Simple Layer 2 management
• Web-based user interface
• Limited lifetime warranty upon registration
Web Interface
User-friendly web interface for easy access to management features
VLAN
Segment your network into VLANs
Easy Deployment with Auto-Configuration
Simply connect the switch to your network, and it will automatically detect devices for easy management
Energy-Efficient Design
Automatic energy-saving features reduce power consumption
Uncomplicated. Simple. Smart.
The DGS-1100 series smart switches offer an affordable solution for environments requiring straightforward network management
Smart Web Interface
The DGS-1100 web interface allows easy management of L2 features such as VLAN, Spanning Tree Protocol (STP), and static link aggregation. Powerful security features like IGMP snooping, Static MAC, and Storm Control make the DGS-1100 series a versatile solution for environments needing hassle-free deployment and configuration
Free Network Management Software
Download our free Nuclias Connect software designed for network integrity, control, and cost-effective scaling. It can be used as a local management platform or a cloud solution. Alternatively, the dedicated Nuclias Connect Hub provides hardware-based centralized network management
Simple Troubleshooting
The DGS-1100 series includes loopback detection and cable diagnostics to help network administrators quickly and easily identify and resolve network issues
Green Technology
The DGS-1100 series features energy-saving capabilities without sacrificing performance. Most switches in the series have a fanless design for quiet and efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE
Free Next Business Day Service
Standard free next business day service for quick replacement of faulty equipment. Our fast technical support is designed to provide businesses with the best possible support for their unique environments. Our extended warranty and service packages further extend warranty periods and minimize downtime
Specifications
General
Form Factor: 11” desktop (rack mounting kit included), 1U height
Number of Ports: 16 x 10/100/1000 Mbps
Port Features: IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet, IEEE 802.3z for Gigabit fiber, IEEE 802.3af/at (only DGS-1100-24PV2 ports 1 to 12), IEEE 802.3az compliant, Auto-negotiation, Auto MDI/MDIX, IEEE 802.3x Flow Control supports full-duplex mode, Supports half/full-duplex operation (half/full at 10/100 Mbps, full at 1000 Mbps)
Performance
Switching Capacity: 32 Gbps
Maximum Forwarding Rate: 23.81 Mpps
MAC Address Table Size: 8K entries
Packet Buffer: 4.1 Mbits
Flash Memory: 16 Mbytes
Power Consumption
Standby Mode: 3.4 W
Maximum Power Consumption: 10.1 W
Physical
Power Supply: 100 to 240 V AC, 50 to 60 Hz internal power supply
MTBF: 710,519 hours
• 16 x 1000Base-T ports
• Fanless design
• Simple Layer 2 management
• Web-based user interface
• Limited lifetime warranty upon registration
Web Interface
User-friendly web interface for easy access to management features
VLAN
Segment your network into VLANs
Easy Deployment with Auto-Configuration
Simply connect the switch to your network, and it will automatically detect devices for easy management
Energy-Efficient Design
Automatic energy-saving features reduce power consumption
Uncomplicated. Simple. Smart.
The DGS-1100 series smart switches offer an affordable solution for environments requiring straightforward network management
Smart Web Interface
The DGS-1100 web interface allows easy management of L2 features such as VLAN, Spanning Tree Protocol (STP), and static link aggregation. Powerful security features like IGMP snooping, Static MAC, and Storm Control make the DGS-1100 series a versatile solution for environments needing hassle-free deployment and configuration
Free Network Management Software
Download our free Nuclias Connect software designed for network integrity, control, and cost-effective scaling. It can be used as a local management platform or a cloud solution. Alternatively, the dedicated Nuclias Connect Hub provides hardware-based centralized network management
Simple Troubleshooting
The DGS-1100 series includes loopback detection and cable diagnostics to help network administrators quickly and easily identify and resolve network issues
Green Technology
The DGS-1100 series features energy-saving capabilities without sacrificing performance. Most switches in the series have a fanless design for quiet and efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE
Free Next Business Day Service
Standard free next business day service for quick replacement of faulty equipment. Our fast technical support is designed to provide businesses with the best possible support for their unique environments. Our extended warranty and service packages further extend warranty periods and minimize downtime
Specifications
General
Form Factor: 11” desktop (rack mounting kit included), 1U height
Number of Ports: 16 x 10/100/1000 Mbps
Port Features: IEEE 802.3 for Ethernet, IEEE 802.3u for Fast Ethernet, IEEE 802.3ab for Gigabit Ethernet, IEEE 802.3z for Gigabit fiber, IEEE 802.3af/at (only DGS-1100-24PV2 ports 1 to 12), IEEE 802.3az compliant, Auto-negotiation, Auto MDI/MDIX, IEEE 802.3x Flow Control supports full-duplex mode, Supports half/full-duplex operation (half/full at 10/100 Mbps, full at 1000 Mbps)
Performance
Switching Capacity: 32 Gbps
Maximum Forwarding Rate: 23.81 Mpps
MAC Address Table Size: 8K entries
Packet Buffer: 4.1 Mbits
Flash Memory: 16 Mbytes
Power Consumption
Standby Mode: 3.4 W
Maximum Power Consumption: 10.1 W
Physical
Power Supply: 100 to 240 V AC, 50 to 60 Hz internal power supply
MTBF: 710,519 hours
